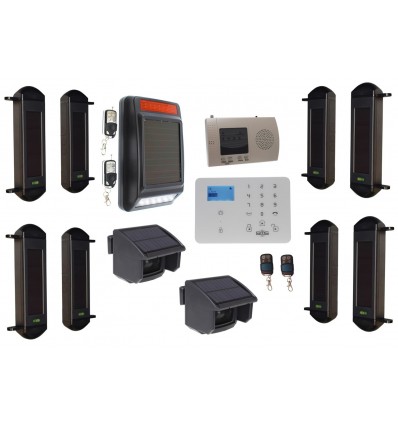

Long Range Solar Powered Comprehensive Wireless Perimeter GSM Alarm System with 900 metre Transmission & 100 metre Detection, supplied with:

4 x sets of Long Range 1B Solar Powered Wireless Perimeter Beams.
1 x 4 x channel Wireless Receiver.
1 x KP9 GSM Auto-Dialler & 2 x Remote Controls.

A complete Alarm System to help you Monitor & Secure your Perimeter, ideal for DIY Installation.

Receiver:

The Indoor 4 - Channel Wireless Receiver is powered by a standard 3-pin Plug in Transformer and has the following features:

4 x Adjustable Dry Relay N/O or N/C Outputs (often used to trigger auto-diallers, timer relays).
Adjustable 12v DC Outputs (often used with sirens & flashing lights).
ON/OFF Switch.
5 minute Exit Delay (using the remote controls or receiver).
Volume Control.
Will work with up to 128 sets of Detectors.
Optional Reminder Bleeps.
Exit Delay Option.

Wireless Beams:

These impressive Solar Powered Wireless Perimeter Beams (often called laser beams) are packed with impressive features listed below:

Battery Powered with Built in Solar Charging: (making for easy installation).
Dual Detection Technology: (prevents false alarms from small animals and moving debris).
100 metre Detection: (covers more are with less detectors).
Impressive 900 metre Wireless Range:
Quality Build.
Supplied with Wall & Pole Mounting Brackets.
Test Lights: (for easy installation).
Top up charging Ports.
Option Test Beep (which can be silenced).

The Dual Detection Technology works by having a pair of Detectors (set 60 mm apart from each other) on each Beam, both Detectors have to be breached simultaneously to create an activation, allowing small animals, insects, leaves & debris to safely pass by. There are a pair of detectors on each size of Beam, so these 1B-100 have one pair of detectors, a 2B-100 would have two pairs and the 3B-100 would have three pairs, each pair of detectors work independently of each other resulting in the 3B-100 Beams having three chances to detect an Intruder.

They also have an additional Charging Port which can be used to give the Beams a boost charge should you experience a lengthy duration of low sun light, or perhaps one of the beams needs to be fitted into a slightly covered location.

They are very easy to install as they have a built in Red Glow Light (for easy lining up).

You can use up to 128 sets of Beams with this Receiver & 32 sets should you decide to add a Solar Wireless Siren (part number 004-2810).

Operating Range:

The Wireless operating range between the Beams & Receivers is 900 metres (line of sight) which can be doubled by using the signal repeater (part number 004-2910).

KP9 GSM Auto-Dialler:

The KP GSM Auto-Dialler is connected to the Wireless Receiver by a short length of bell cable (supplied) and communicates through mobile phone networks, a standard sized SIM Card needs to be fitted (not supplied but is available in the drop down above), you can use either PAYG or Contract.

The Dialler operates on the mobile phone networks making it more reliable and is packed full of features normally only associated with much more expensive systems including:

Contacts up to 9 x Key-holders by Telephone & Text Message (optional).
Built in Siren (adjustable duration from 1 to 999 seconds).
Simple Plug in Power Supply with Back up Battery.
Transformer Rating: 12v DC 1 amp.
Can be used with 2 x Wireless Sirens (Standard & H/Duty).
Easy to Program (using the built in keypad and LCD Screen or APP).
Easy to Operate using:
- Remote Control.
- Built in Keypad.
- Built in Timer.
- Text Message.
- APP.
Many Modes of Operation including:
- Full Arm.
- Home Arm.
- Entrance.
- On Site.
- Outer.
- Inner.
- 24 Hour (with Siren).
- 24 Hour (silent).
- Not in Use.
- Doorbell.
2 x Wired Input Zones.
99 x Wireless Zones.
Built in Power Failure (optional).
Built in Temperature (optional).
2 x way Communication.
Log (history) Logging.
Low Battery Warning (of accessories).
Optional APP (iOS or Android).
12 Language Menu (including English, French, German, Italian, Dutch & Spanish).

The secret to using a GSM Auto-Dialler with a Perimeter Alarm is to use the Dialler as the brains of the system, therefore any additional External Sirens would be connected to the output of the Dialler (not the internal receiver), this gives you full control by using the:

Built in Keypad.
Remote Control.
Text Message.
Built in Timer.
APP.

The GSM Control Panel can also in different ways helping you a return on the investment, examples below:

Wireless Internal Burglar Alarm.
Wireless Smoke Alarm.
Temperature Monitor.
Power Failure Monitor.
Door Bell.
2-way Communication.
Water & Flood Monitor.

You can add many additional accessories to this Perimeter Alarm system to suit your application including:

Additional Perimeter Beams (4 x sizes).
Window Beams (2 x sizes).
PIR's & Door Contacts.
Smoke Detectors.
External Wired & Wireless Sirens.
Internal Sirens & Buzzers.
Speech Alerts.
Relays (for lighting).
Flashing Lights.

*You can use up to 128 sets of Wireless Detectors with this single Alarm System*

If you require advice when building your system, please contact us for Friendly, No Obligation Advice !!
