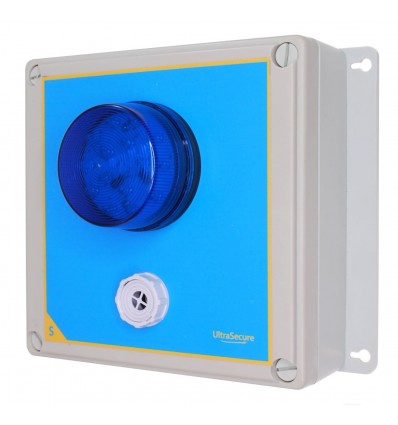

Wireless Lockdown Alarm Siren Control Panel with Adjustable Siren & Blue Flashing LED

Long Range Wireless Lockdown Alarm Siren Control Panel with a built in adjustable Siren & Blue Flashing LED, can also be used for general Panic Alarms.

The Siren Control Panel can be used with various Wireless Panic Buttons which have an impressive range back to the control panel of 800 metres (line of sight), which equates to 200 - 500 metres in most applications, wireless signal repeaters can be supplied for applications needing more range (contact us to discuss).

The Panic Buttons options include:

• Lockdown Button, reference 009-1650.
• Help Button, reference 009-1670.
• Assistance Button, reference 009-1640.
• SOS Button, reference 009-1660.
• Lanyard Portable Button, reference 009-0510.
• Portable Button, reference 006-0300.

The unique Built in Siren has 32 available Tones together with Volume Control allowing you to utilize the Control Box for your individual requirements.

It is powered by a plug in transformer, which can be connected into a fused spur (recommended), we also offer the option of including a Back Up Power Supply for applications wanting to ensure the system works throughout a Power Cut.

Operation:

In the event of a Panic Button being activated, the Siren & Flashing Strobe will latch ON and remain ON until the system is reset by using a Wireless Reset Button.

There are variations to how this Box can be programmed to suit all types of requirements, some examples listed below:

• Siren & Flashing LED Remains ON (until reset).
• Siren operates for 5 seconds, Flashing LED Remains ON (until reset).
• Siren operates for 60 seconds, Flashing LED Remains ON (until reset).
• Siren operates for 10 minutes, Flashing LED Remains ON (until reset).

If you choose to include a battery backup system, please ensure you have at least one wireless reset button available, if no battery backup is added then the system can be reset by removing the power for a few seconds.

Additional Siren Boxes:

You can add as many Siren Control Boxes to your Lockdown or Panic Alarm to suit, each one can be adjusted to suit the exact location of its installation, you may wish to have some a very with low volume and a flashing LED whilst others set to be loud.

It is also possible to connect a wired Siren & Flashing Strobe Boxes to each Wireless Siren Box for applications where rooms may be back to back.

Installation:

These Lockdown Alarm Siren Panels are designed for easy installation, they will be fully prepare before  despatch, all the customer needs to do is:

• Mount the Control Box (handy lugs for easy & quick fitting).
• Code the Box to the Panic Buttons if adding to an existing system (new systems would be done before despatch).
• Power the Control Box (we recommend a fused spur).
• Choose the Siren Tone & Volume (simple and quick adjustments).
• Test.
