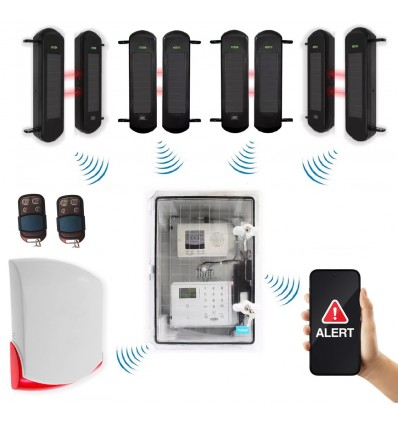

Long Range Solar Powered Comprehensive Wireless Perimeter GSM Alarm System with 900 metre Transmission & 100 metre Detection, supplied with:

4 x sets of Long Range 2B Solar Powered Wireless Perimeter Beams.
1 x 4 x channel Wireless Receiver.
1 x KP Heavy Duty GSM Auto-Dialler (ideal for commercial applications).
1 x KP Wireless Weatherproof Siren & Flashing Strobe Lights.

A complete Alarm System to help you Monitor & Secure your Perimeter, ideal for DIY Installation.

Receiver:

The Indoor 4 - Channel Wireless Receiver is powered by a standard 3-pin Plug in Transformer and has the following features:

4 x Adjustable Dry Relay N/O or N/C Outputs (often used to trigger auto-diallers, timer relays).
Adjustable 12v DC Outputs (often used with sirens & flashing lights).
ON/OFF Switch.
Volume Control.
5 minute Exit Delay Possible: (using remote control or receiver).
Will work with up to 128 sets of Detectors.
Optional Reminder Bleeps.
Exit Delay Option.

Wireless Beams:

These impressive Solar Powered 2B Wireless Perimeter Beams (often called laser beams) are packed with impressive features listed below:

Battery Powered with Built in Solar Charging: (making for easy installation).
2 x sets of Detection Beams.
Dual Detection Technology: (prevents false alarms from small animals and moving debris).
100 metre Detection: (covers more are with less detectors).
Impressive 900 metre Wireless Range:
Quality Build.
Supplied with Wall & Pole Mounting Brackets.
Test Lights: (for easy installation).
Top up charging Ports.

The Dual Detection Technology works by having a pair of Detectors (set 60 mm apart from each other) on each Beam, both Detectors have to be breached simultaneously to create an activation, allowing small animals, insects, leaves & debris to safely pass by. There are a pair of detectors on each size of Beam, so the 2B-100 have two pairs whilst the 3B-100 would have three pairs, each pair of detectors work independently of each other resulting in the 3B-100 Beams having three chances to detect an Intruder.

They also have an additional Charging Port which can be used to give the Beams a boost charge should you experience a lengthy duration of low sun light, or perhaps one of the beams needs to be fitted into a slightly covered location.

They are very easy to install as they have a built in Red Glow Light (for easy lining up).

These Beams can be set to operate a small siren for a few seconds when activated (pressing ON/OFF button 3 - 6 times, or OFF by pressing the same ON/OFF button 7 or 8 times).

You can use up to 128 sets of Beams with this Receiver & 32 sets should you decide to add a Solar Wireless Siren (part number 004-2810).

Operating Range:

The Wireless operating range between the Beams & Receivers is 900 metres (line of sight) which can be doubled by using the signal repeater (part number 004-2910).

H/D GSM Auto-Dialler:

The KP Heavy Duty GSM Auto-Dialler is constructed with a steel case, ideal for many commercial applications or the harsher environments.

It is connected to the Wireless Receiver by a short length of bell cable (supplied) and communicates to key-holders through mobile phone networks, a standard sized SIM Card needs to be fitted (not supplied as standard but available in the drop down above), you can use either PAYG or Contract.

It is very easy to program by using the built in keypad, and easy to use with the following features:

Will send up to 3 text messages when triggered.
Up to 5 telephone numbers can be programmed (a maximum of 32 digits).
Will contact main key-holder in the event of a 30 minute power failure (optional).
Remote operation (by text message).
4 methods of arming & disarming:
- Keypad.
- Remote Control.
- Auto-setting.
- Text Message.
Adjustable entry & exit delay.
Back up battery.
16 wired zones.
16 wireless zones (allows you to fit Intruder & Safety Sensors including wireless door contacts, internal PIR's, smoke & water sensors).
12v output (for connecting to sirens etc).
Communication Method: Sim Card.
External Aerial can be Fitted (for a better mobile phone signal).

The secret to using a GSM Auto-Dialler with a Perimeter Alarm is to use the Dialler as the central hub of the system, therefore any additional Sirens, Flashing Lights or Relays connected would only be active during suitable times.

The Auto-Dialler can be operated by:

Built in Keypad.
Built in Automatic Timer.
Remote Controls.
Text Message.

The Receiver is used for just two reasons, first to receiver the signal from all of the Detectors which informs the Auto-Dialler, the second as a useful Chime unit for when you are at home and you do not need the system Armed.

Wireless Siren:

The Wireless Siren & Strobe has an impressive 120 Decibel Siren, Flashing LED (in standby) Bright Strobe (in activation), Back up Battery, Tamper Buttons together with an impressive 300 metre (line of sight) working range from the Auto-Dialler.

The Siren is powered by a 3-pin (2-pin available upon request) plug in Transformer but is activated Wirelessly from a Transmitter located inside the Auto-Dialler.

The Siren also has a slow Flashing LED when it is in the disarmed mode which makes for an Ideal Deterrent.

The Siren would only be active when the Auto-Dialler has been Armed, which allows you to have a simple Chime facility inside during times when a Siren is unsuitable.

You can add many additional accessories to this Perimeter Alarm system to suit your application including:

3 sizes of additional Wireless Perimeter Beams (up to 128 can be used on any single system).
2 sizes of Window Beams.
PIR's & Door Contacts.
Smoke Detectors.
External Wired & Wireless Sirens.
Internal Sirens & Buzzers.
Speech Alerts.
Relays (for lighting).
Flashing Lights.

If you require advice when building your system, please contact us for Friendly, No Obligation Advice !!
