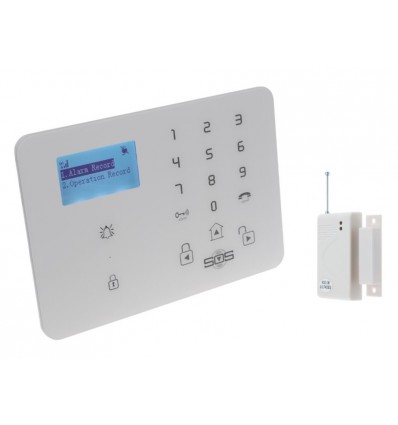

KP9 3G or GSM Fire Door Alarm

KP9 3G or GSM Wireless Fire Door Alarm will activate a Built in Siren (optional, which can be switched to silent) together with contacting key-holders by Telephone & Text Message if the Fire Door is opened (whilst the Alarm panel is Armed).

This kit is supplied with the following (although up to 94 additional wireless sensors can be added):

• 1 x Long Range Wireless Magnetic Door Contact.
• 1 x 3G Control Panel.

Door Contact:

The long range Wireless Door Contact can be fitted onto a Fire Door up to 300 metres (open air) away from the GSM Control Panel (which equates to around 100 metres in most applications) although a Signal Repeater can be added to help punch the Wireless Signal through multiple walls if required. Many more Wireless Door Contacts can be added to the system.

The Door Contact and Magnet are fitted onto a Fire Door & Frame in a position which results in both parts being close to touching whilst the Door is closed.

Control Panel:

The GSM Control Panel is powered by a simple 3-pin Plug in Transformer and has a battery back up system to cope with power cuts, it is Armed & Disarmed using the built in Keypad, although a Remote Control can be added if required. The Panel can also be used via an APP if required.

SIM Card:

The control panel requires a standard size SIM Card for the communication, these can be PAYG or Contract, we would strongly advise that you check the small print on the PAYG SIM Cards (as some providers have a habit of taking unused credit away from the card at the end of each month or turn them off if they are not used within 3 months). We do offer a Roaming SIM Card to our customers which are ideal for use in GSM Alarm Systems as not only does the credit remain intact at the end of a month but the card also finds the best network in your location, full information found here.

Communication:

When the KP9 GSM Panel calls key-holders by Telephone, the key-holders have the option to:

• Press * on their Telephone (this will stop the alarm calling other key-holders but remain fully armed.
• Press # on their Telephone (this will stop the alarm calling other key-holders but will disarm the panel.

3G or GSM:

You can select above (just above add to cart button) the latest 3G Control Panel or the default GSM Panel, both panels will operate Telephone & SMS functions in Countries where 2G is still operational (most of Europe), if in doubt please ask us for advice.

Other Uses:

This versatile Alarm can also be used for other uses which can help make a return on your investment, these uses could include:

• Wireless Smoke Detectors.
• Wireless Staff Panic Buttons.
• Wireless Water Detectors.
• Wireless Door Chimes.
• Wireless Intruder Detectors.

Control Panel:

The GSM Control Panel is packed full of features normally only associated with expensive professional Alarms, they include:

• 94 x Wireless Zones (channels).
• Contacts up to 9 x Key-holders by Telephone & Text Message (optional).
• Built in Siren (adjustable duration from 0 to 999 seconds).
• Ajustable N/O or N/C Output Relay (1 - 999 seconds, can be used with Sirens).
• Output Relay Rating: 240 v AC up to 3 amp.
• Simple Plug in Power Supply with Back up Battery (ideal for DIY installations).
• Can be used with 2 x Wireless Sirens (Standard & H/Duty).
• Easy to Program (using the built in keypad and LCD Screen or APP).
• Easy to Operate using:
  • Remote Control.
  • Built in Keypad.
  • Built in Timer.
  • Text Message.
  • APP.
• Many Modes of Operation including:
  • Full Arm.
  • Home Arm.
  • Entrance.
  • On Site.
  • Outer.
  • Inner.
  • 24 Hour (with Siren).
  • 24 Hour (silent).
  • Not in Use.
  • Doorbell.
• 2 x Wired Input Zones (for use with wired sensors).
• Built in Power Failure (optional).
• Built in Temperature (optional).
• Built in Tamper Switch.
• 2 x way Communication.
• Log (history) Logging.
• Low Battery Warning (of accessories).
• 12 Language Menu (including English, French, German, Italian, Dutch & Spanish).

Sirens:

This Alarm Panel has a built in Siren which can be programmed to operate between 1 second to 16 minutes when activated, it can be turned off before this time by the owner using the built in Keypad, it can also be used in Silent mode for some or all zones (often used in silent mode when activated by a panic button).

We can also add two types of Wireless External Sirens.
